Single-lambda

FeaturesParameter

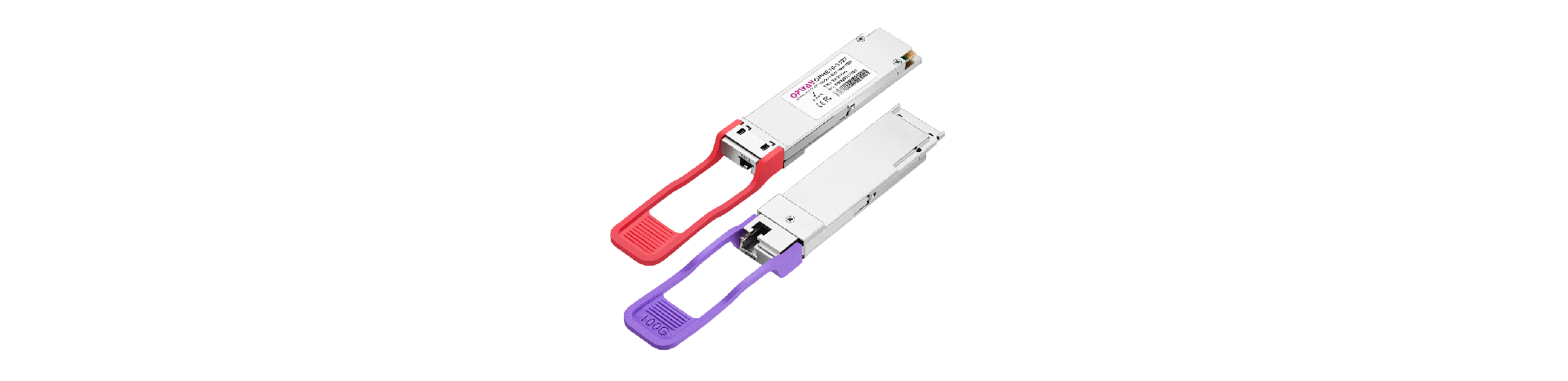

Hot-pluggable QSFP28

Compliant with 100G Lambada MSA

Single channel design, supports 106.25Gb/s data rate

Maximum link up to 30km

Single +3.3V power supply

Operating temperature range:0~70℃

Built-in digital diagnostic functions

Support KP4 FEC inside

P/N	Description	Data Rate	Reach	Tx	Rx	Output Power	Sensitivity
OPQE05-SW	100G DR1	100Gb/s	500m	1310nm EML	PIN	-2.9~+4.0dBm	≦-3.9dBm
OPQE02-SW	100G FR1	100Gb/s	2Km	1310nm EML	PIN	-3.1~+4.0dBm	≦-4.5dBm
OPQE10-SW	100G LR1	100Gb/s	10Km	1310nm EML	PIN	-1.4~+4.5dBm	≦-6.1dBm
OPQE30-SW	100G ER1-Lite	100Gb/s	30Km	1310nm EML	APD	0~+5.6dBm	≦-12.5dBm

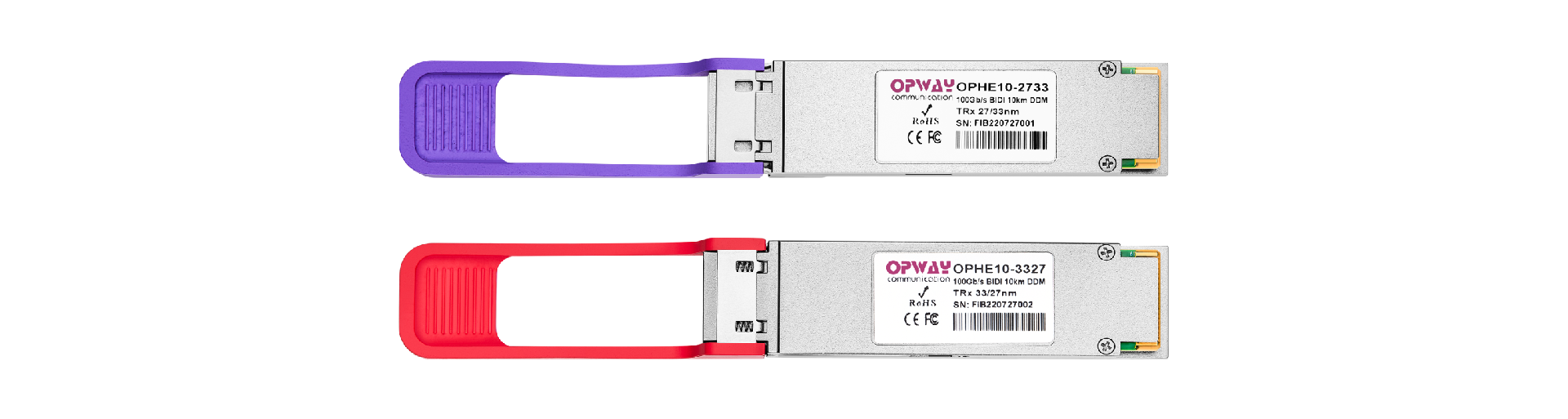

OPHE10-2733	100G BIDI LR1	100Gb/s	10Km	1271nm EML	PIN	-1.4~+4.5dBm	≦-6.1dBm
OPHE10-3327	100G BIDI LR1	100Gb/s	10Km	1331nm EML	PIN	-1.4~+4.5dBm	≦-6.1dBm
OPHE30-0409	100G BIDI ER1-Lite	100Gb/s	30Km	1304.58nm EML	APD	0~+5.6dBm	≦-12.5dBm
OPHE30-0904	100G BIDI ER1-Lite	100Gb/s	30Km	1309.14nm EML	APD	0~+5.6dBm	≦-12.5dBm
